Integrated solar + battery. Whole-home backup. Everyday savings.
Powerwall 3 combines a high-capacity battery with an integrated solar inverter, so one unit can accept DC solar directly and deliver whole-home backup with fast, seamless transitions. Manage everything in the Tesla app—optimize for bill savings, backup, or self-consumption.
Each unit provides up to 11.5 kW AC continuous power and supports up to 20 kW DC solar with six MPPTs, making it a compact, scalable backbone for most homes.
Up to 11.5 kW continuous AC output keeps more of your home running during outages.
Directly connects up to 20 kW of DC solar without needing a separate inverter.

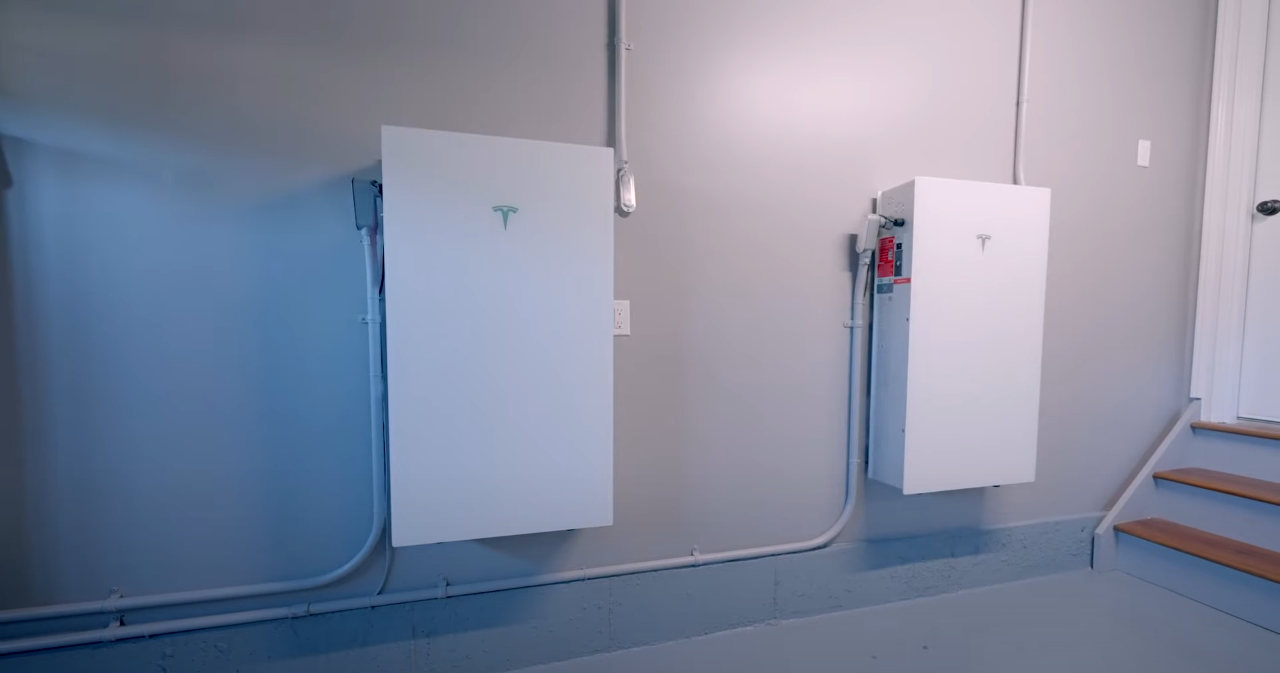

Add expansion units or stack multiple Powerwall 3s for greater storage and higher power output.
Control, monitor, and optimize your system in real time using the Tesla app.

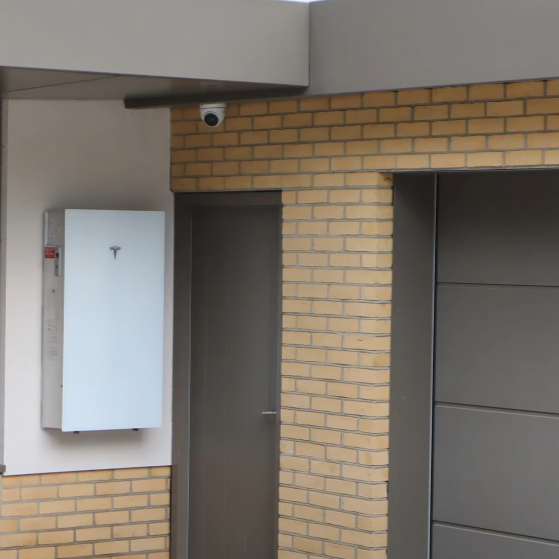

NEMA 3R / IP67 rated battery and electronics; built for outdoor installation in all climates.
| Usable Energy | 13.5 kWh |
| Continuous Power (AC) | 5.8 / 7.6 / 10 / 11.5 kW |
| Maximum Apparent Power | Up to 11,500 VA |
| Maximum Continuous Current | Up to 48 A |
| Load Start Capability | 185 LRA |
| Solar→Home/Grid Efficiency | 97.5% |
| Solar→Battery→Home Efficiency | 89% |
| Warranty | 10 years |
| PV Input (STC) | Up to 20 kW DC |
| MPPTs | 6 (up to 15 A each) |
| PV Voltage Range | 60–550 V DC (60–480 V MPPT) |
| Nominal Grid Voltage | 120/240 VAC split-phase, 60 Hz |
| Power Factor | 0–1 (grid-code configurable) |
| Comms | Wi-Fi, Ethernet, LTE (as backup) |

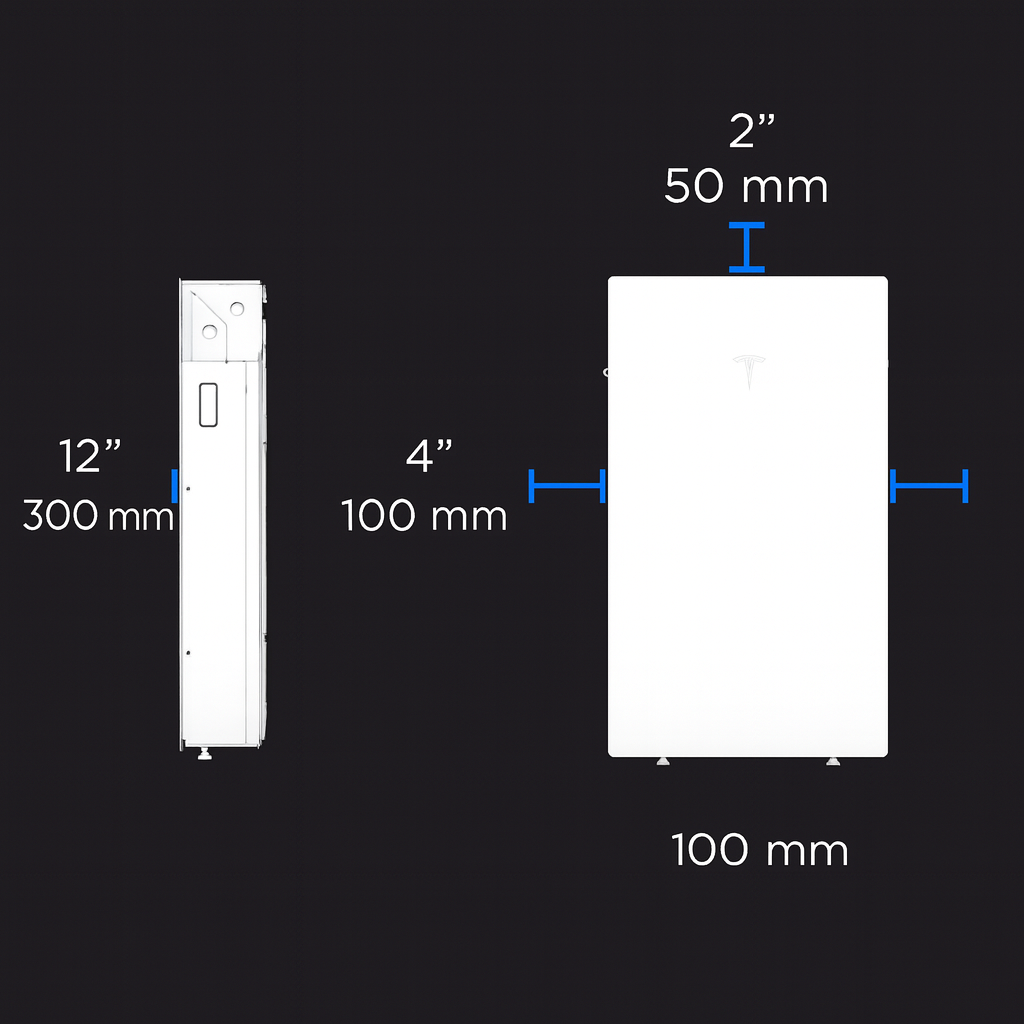

| Dimensions | 43.5 × 24 × 7.6 in |
| Weight | ~291 lb (installed) |
| Mounting | Wall or floor |
| Operating Temp | −20 °C to 50 °C |
| Enclosure | NEMA 3R, IP67 (battery/electronics), IP55 (wiring) |
| Noise @ 1 m | < 50 dB(A) typical |
Designed to leading safety and grid standards, including UL 9540/9540A, UL 1741 (SA/SB/PCS), IEEE 1547, and more.
Get integrated solar + battery in a single system with whole-home backup and smart controls.
Specifications summarized from the official Tesla Powerwall 3 datasheet. :contentReference[oaicite:0]{index=0}
