SPECIFICATIONS

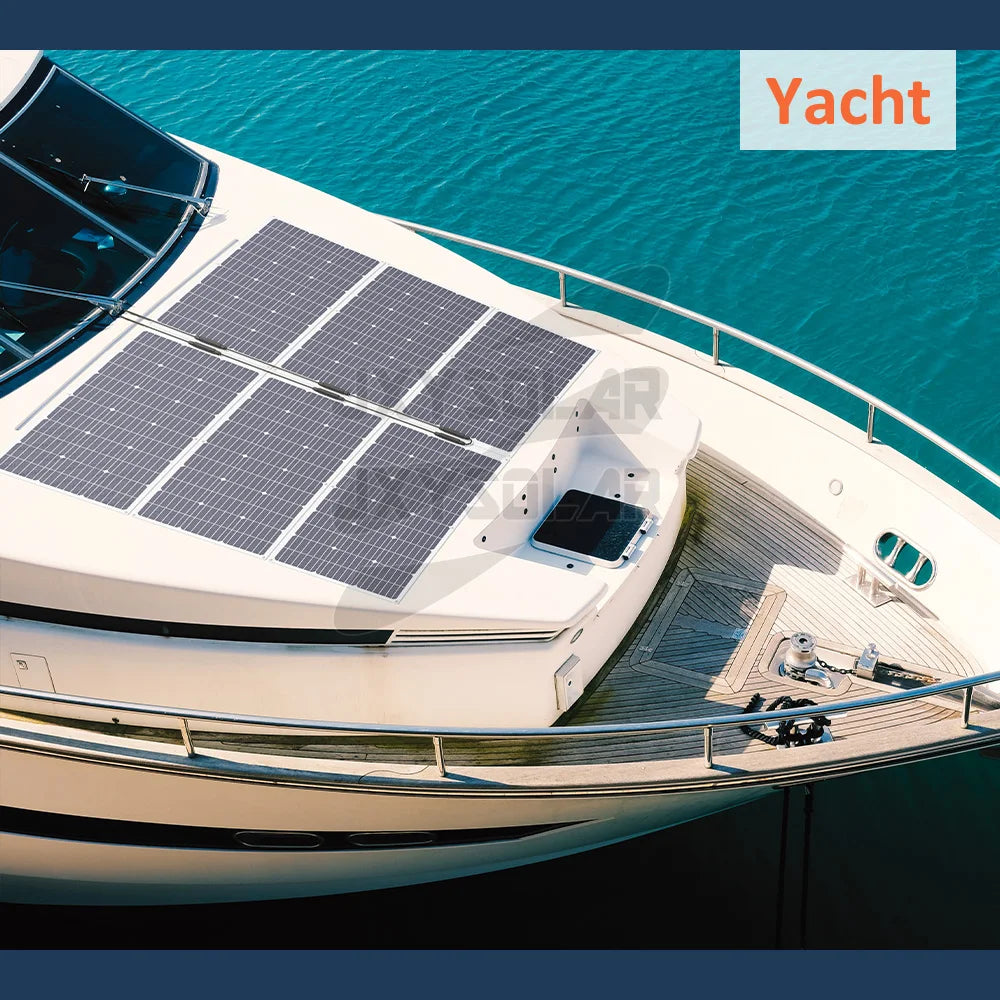

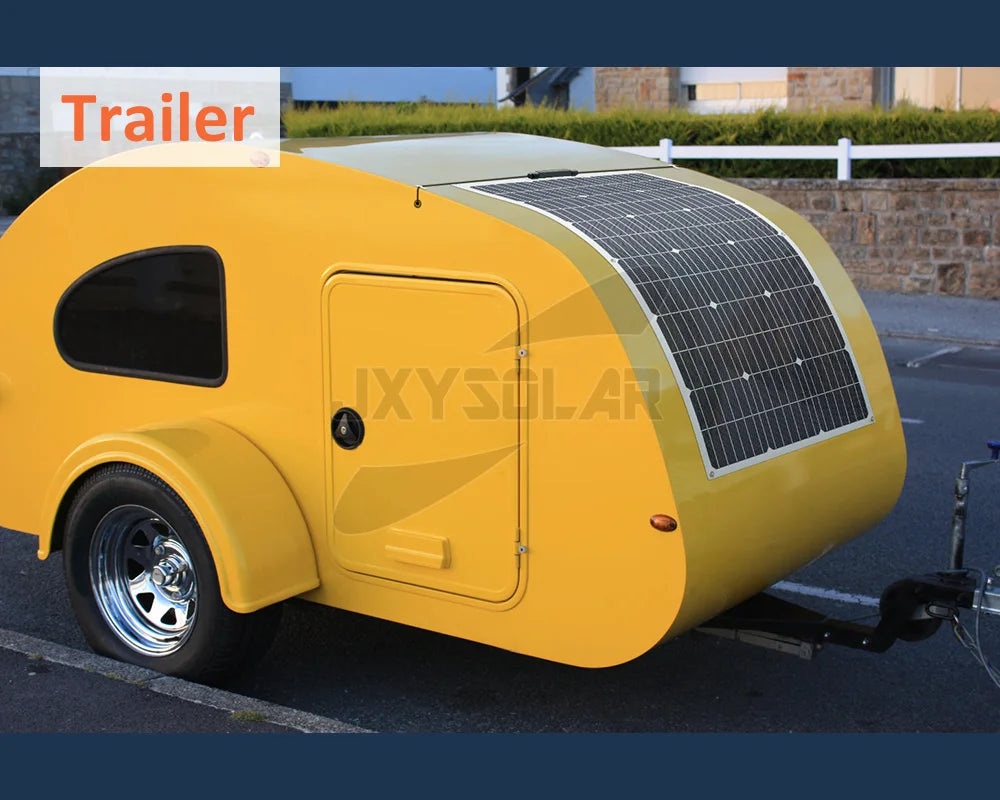

Application: RV Yacht Campervan Home Solar System
Brand Name: ZUIMI,JINXYSOLAR
Cell size: 182mmx91mm
Hign-concerned Chemical: None
Imp: 12.5A
Isc: 13.3A
Max. Power: 500W
Maximum System Voltage: 600V
Model Number: JXY-E500M
OEM Order: Customer's LOGO and Label Print
Origin: Mainland China
Panel Dimensions: 2310*1130*2.5mm
Panel Efficiency: 23%
Place of Origin: Guangdong, China
Solar cell: Monocrystalline Silicon Cells
Vmp: 40.0V
Voc: 50.0V
Weight: 8.4kg
Welcome to place an order. The listed product price and shipping cost are for reference only. For the actual price today, please contact customer service.

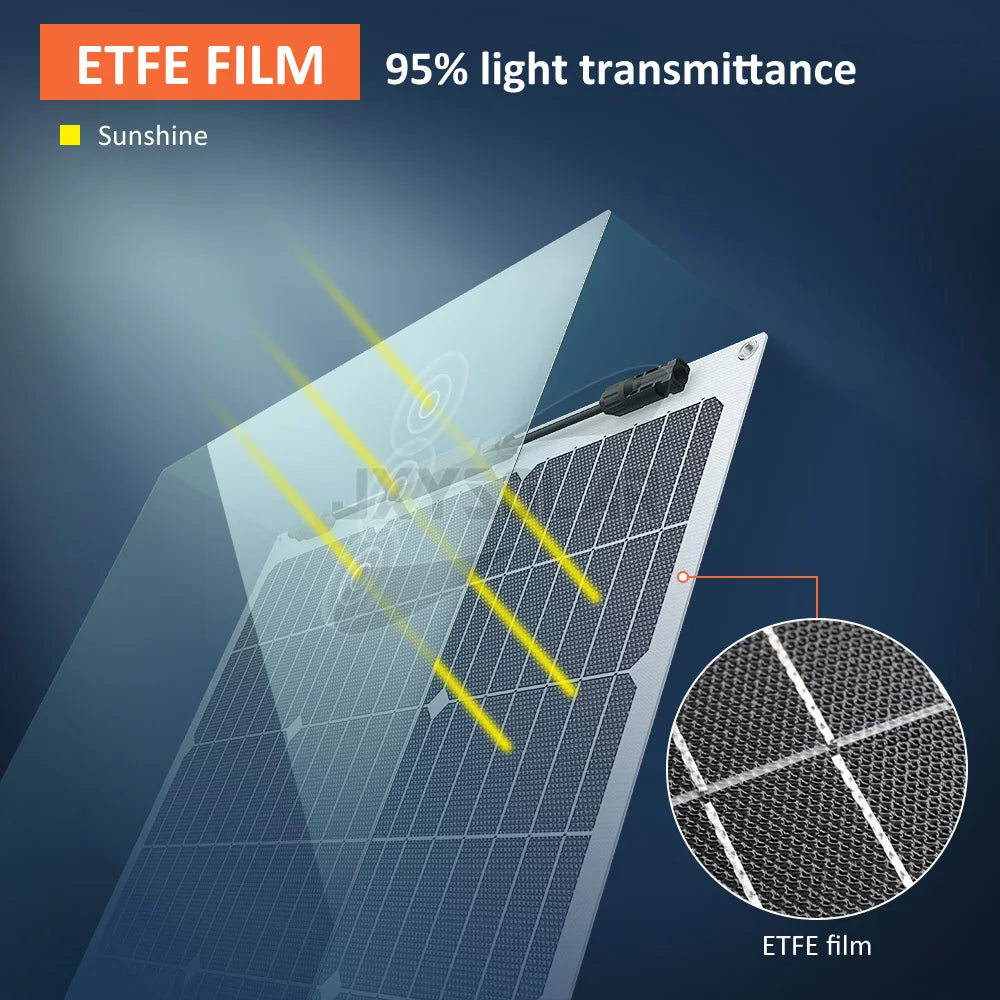

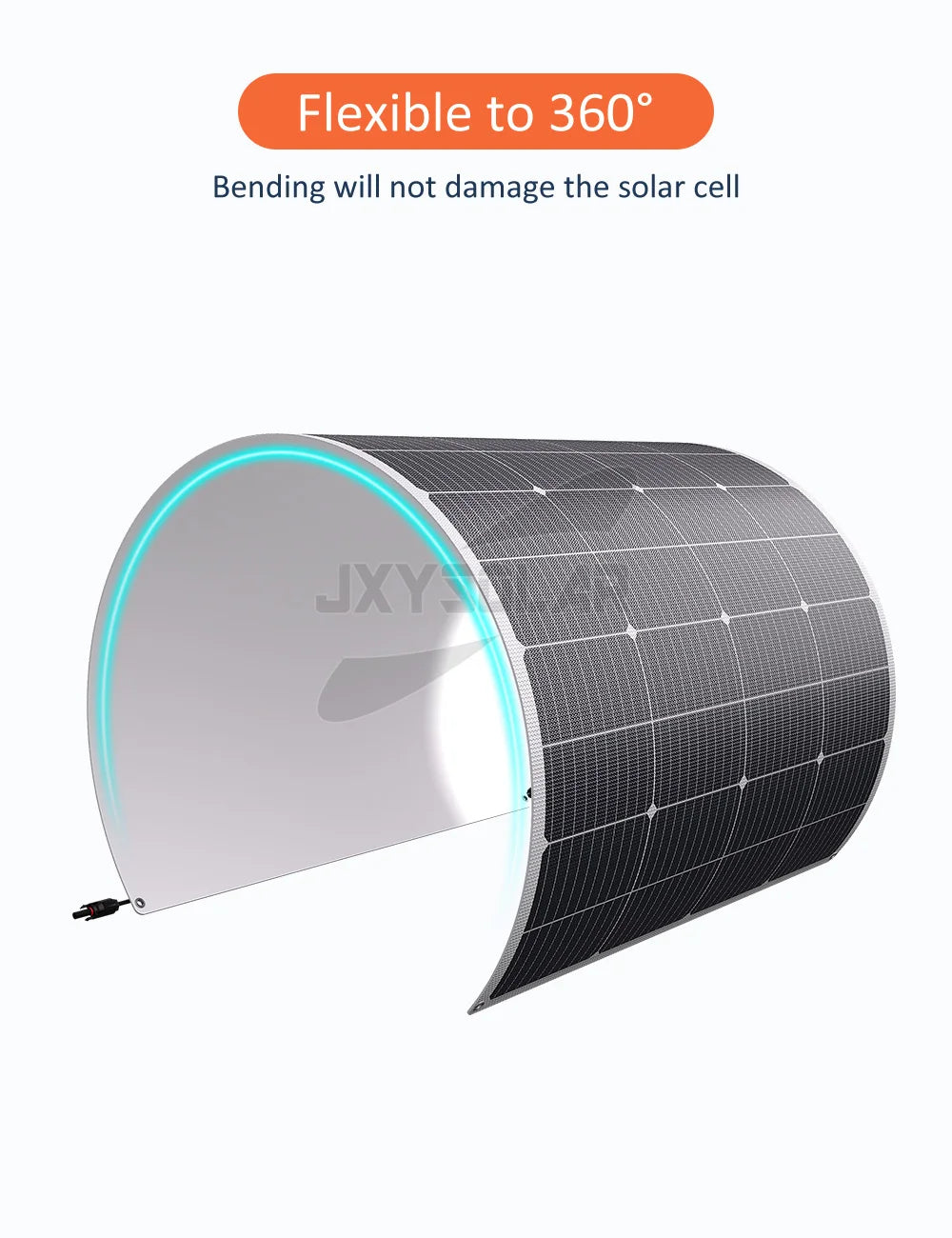

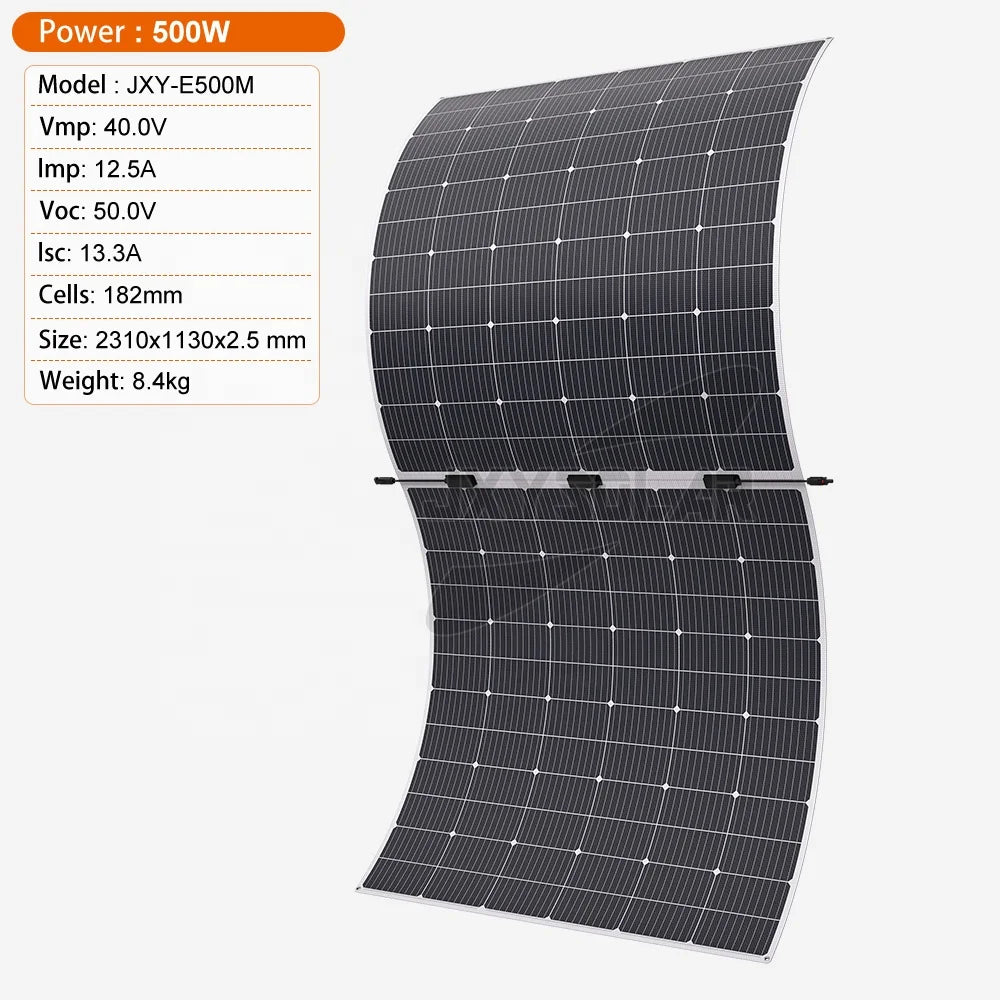

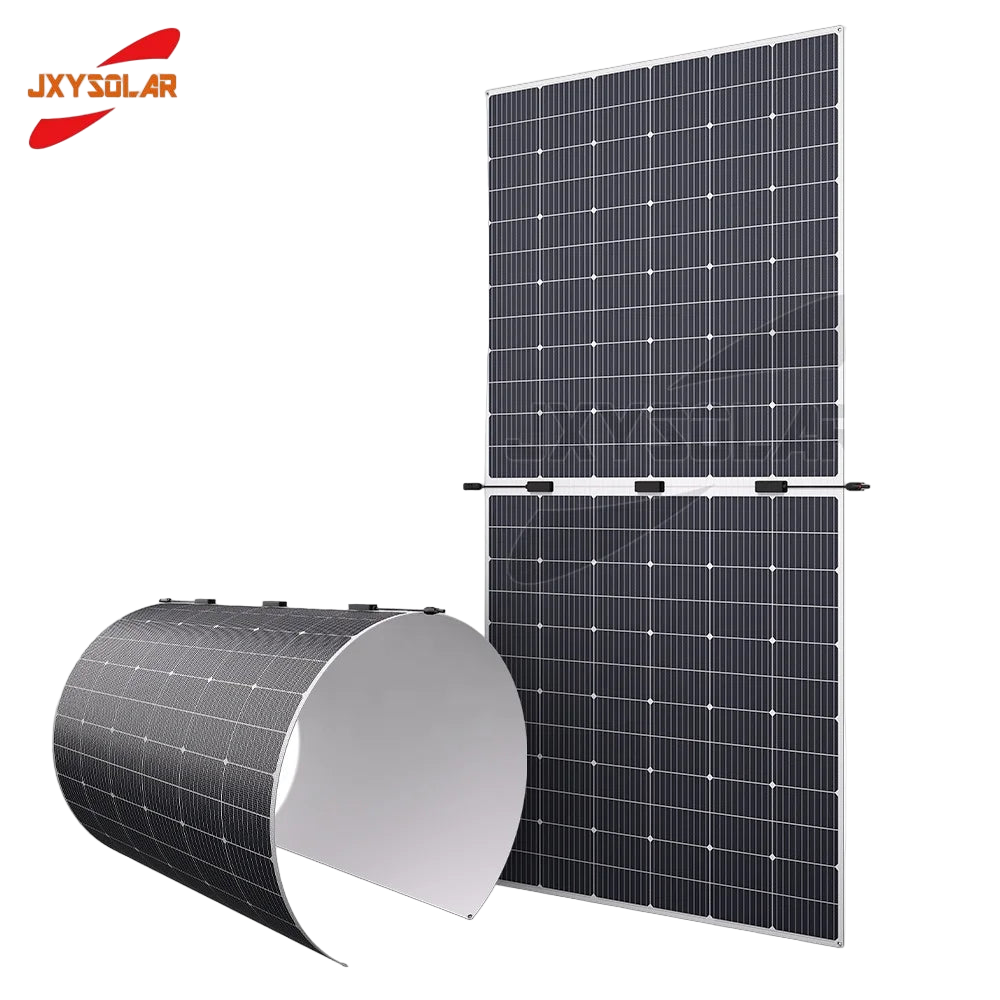

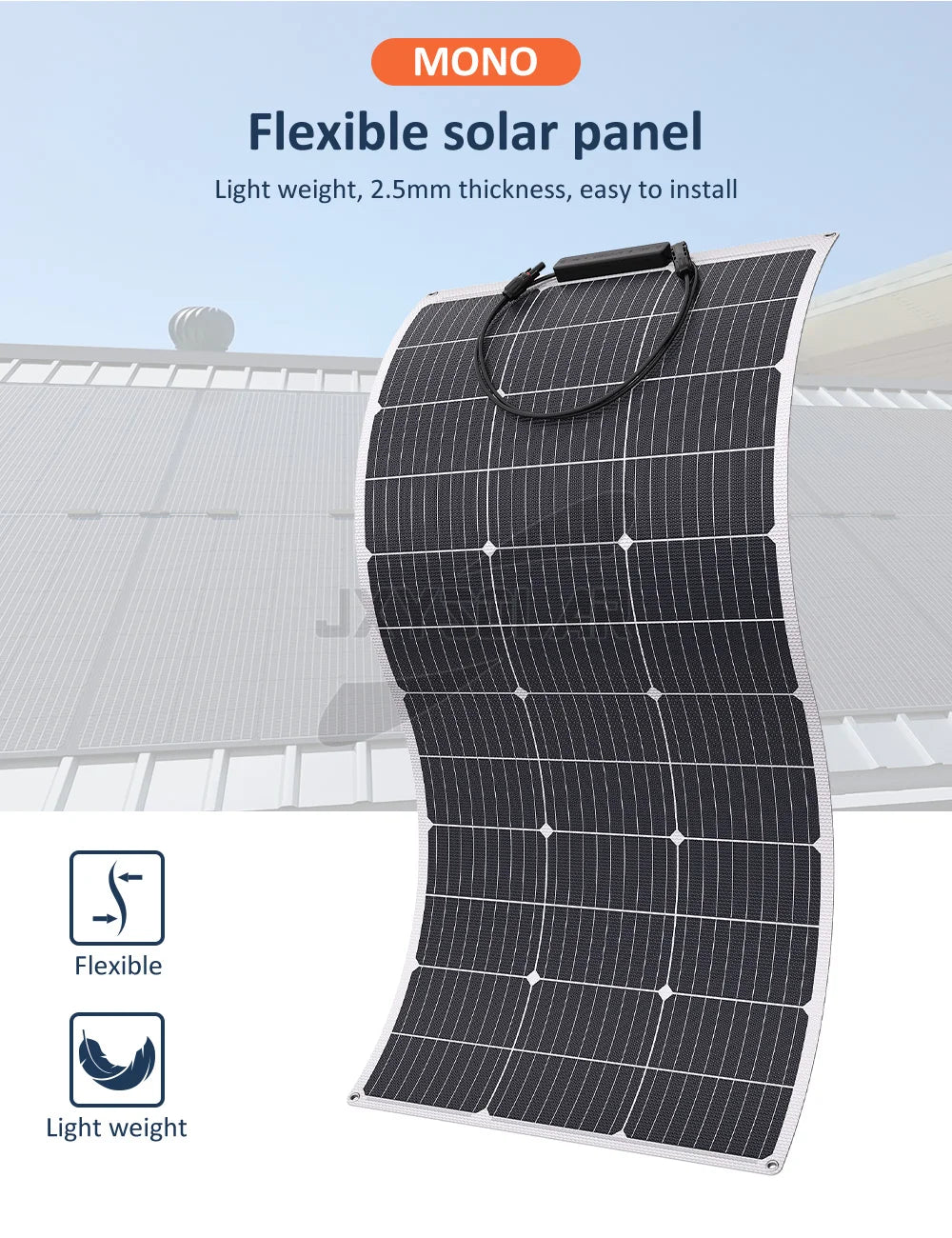

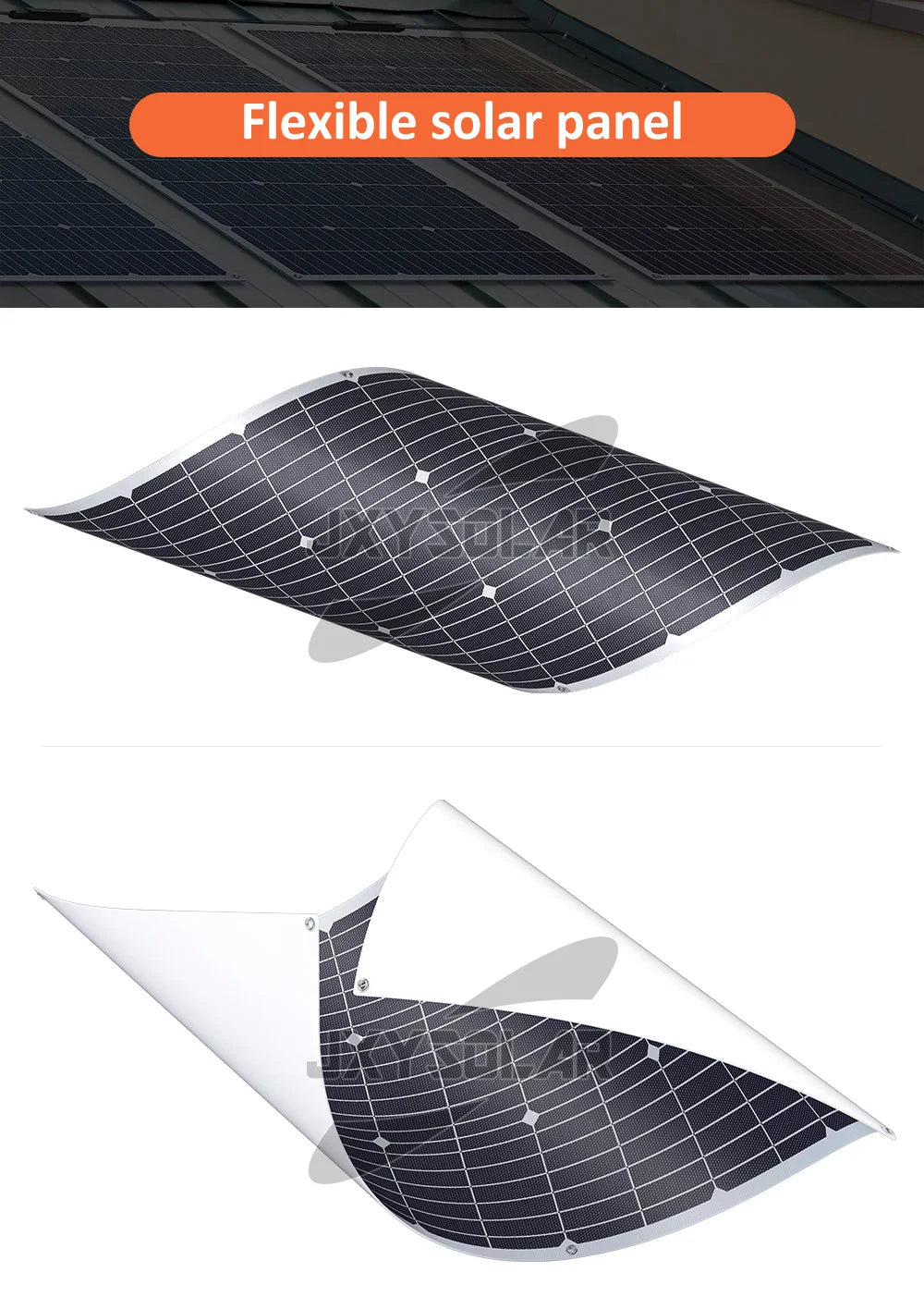

500W 40V Flexible Solar Panel for Home RV Yacht Boat Car Use ETFE Surface Mono Solar Panel 500 Watt Best Price
Product Description

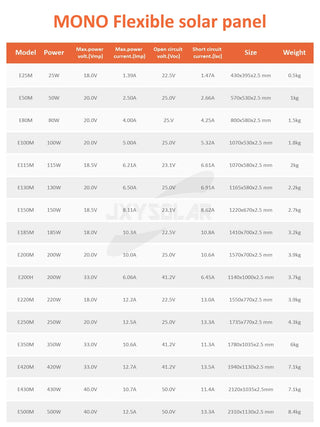

| ELECTRICAL CHARACTERISTICS | |
| Model | JXY-E500M |
| Maximum Power (Pmax) | 500W |
| Maximum Power Voltage (Vmp) | 40.0V |
| Open-circuit Voltage (Voc) | 50.0V |
| Maximum Power Current (Imp) | 12.5A |
| Short-circuit Current (Isc) | 13.3A |
| Cells Efficiency (%) | >23% |
| Operating Temperature | -40鈩儈85鈩� |
| Maximum System Voltage | 600V DC (IEC) |
| Maximum Series Fuse Rating | 20A |
| Nominal Module Operating Temperature(NOMT) | 41±2鈩� |
| Temperature Coefficient of Pmax | -0.35%/鈩� |
| Temperature Coefficient of Voc | -0.27%/鈩� |
| Temperature Coefficient of Isc | +0.048%/鈩� |
|
STC: Irradiance 1000W/m2 , Cell temperature 25C, AM=1.5. Tolerances of Pmax , Voc and lsc are within ±5% |
|
| MECHANICAL CHARACTERISTICS | |
| Solar Cell | Monocrystalline Silicon Cells (182mm*91mm ) |
| Number of Cells | 144(6*24) |
| Module Dimensions | 2310x1130x2.5 mm |
| Weight | 8.40kg |
| Backsheet | Black/White/Transparent |
| Frame | Frameless |

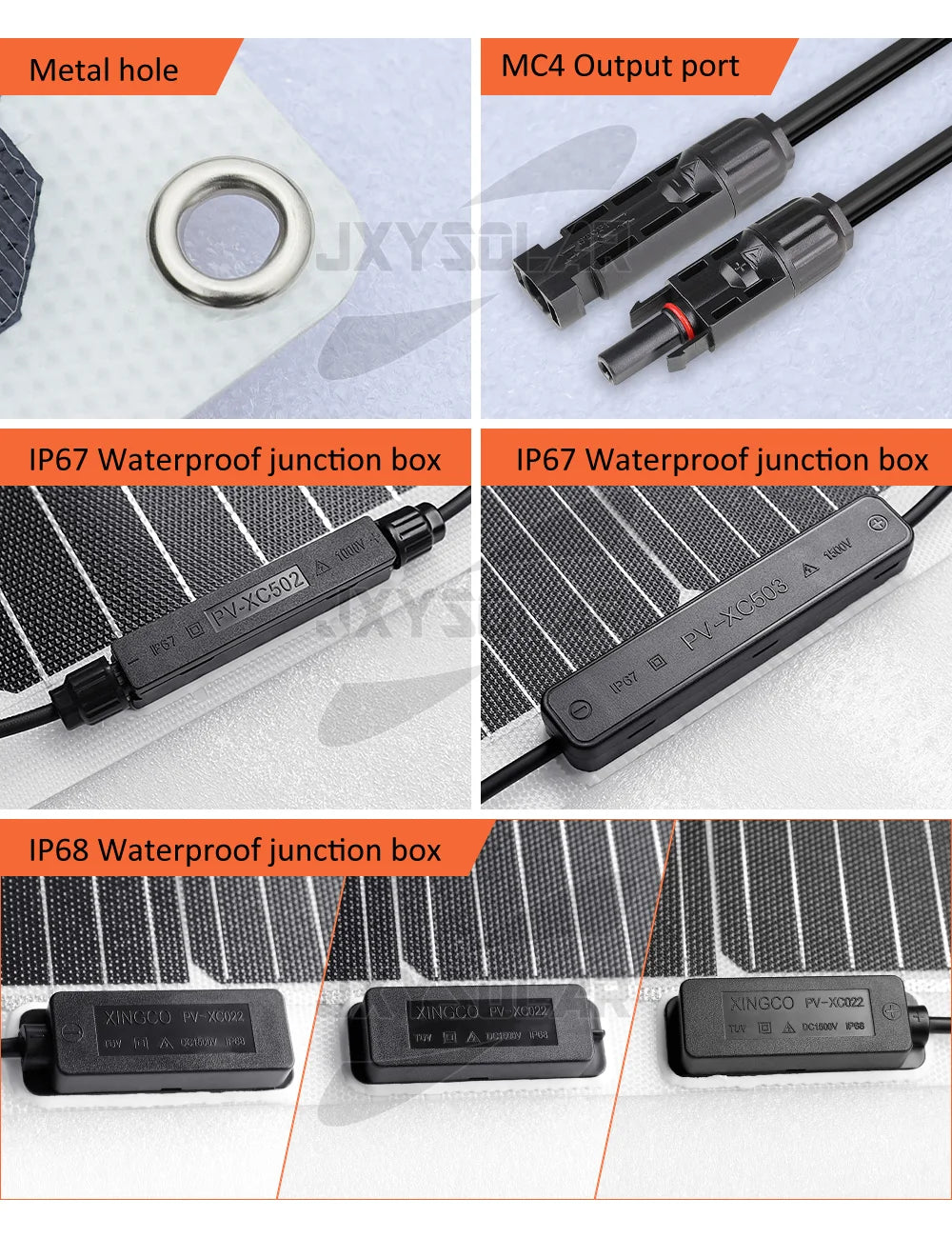

| Junction Box | IP 68 rated |
| Output Cables | 0.3M, 4.0mm² Photovoltaic cable |
| Connector | MC4 compatible |
