SPECIFICATIONS
Brand Name: NoEnName_Null
Hign-concerned Chemical: None
Origin: Mainland China
Type: Hand Tool Parts
你可以添加我的 whats.app+8619310099020,再次感谢!
Products Description
|

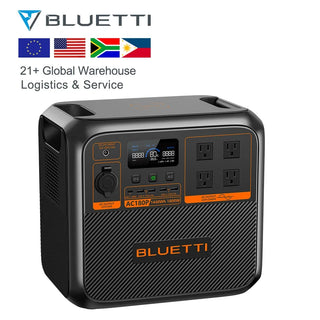

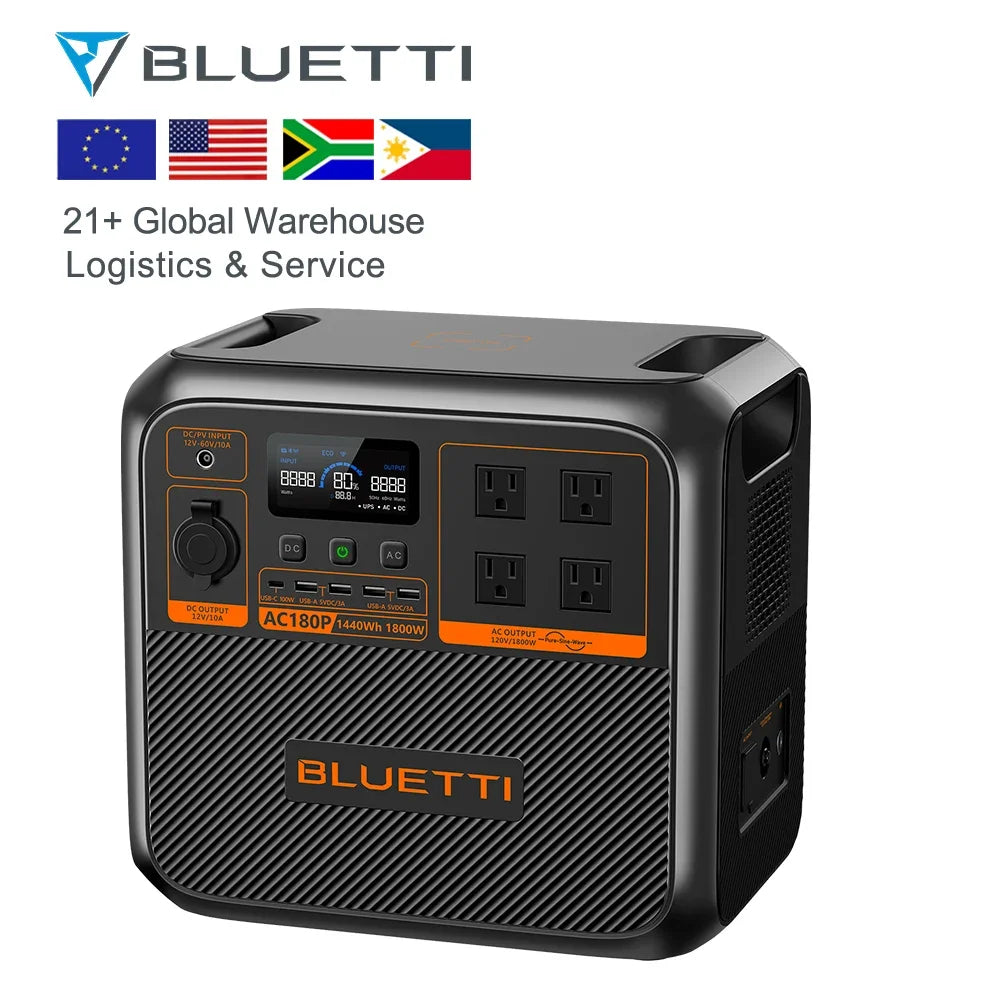

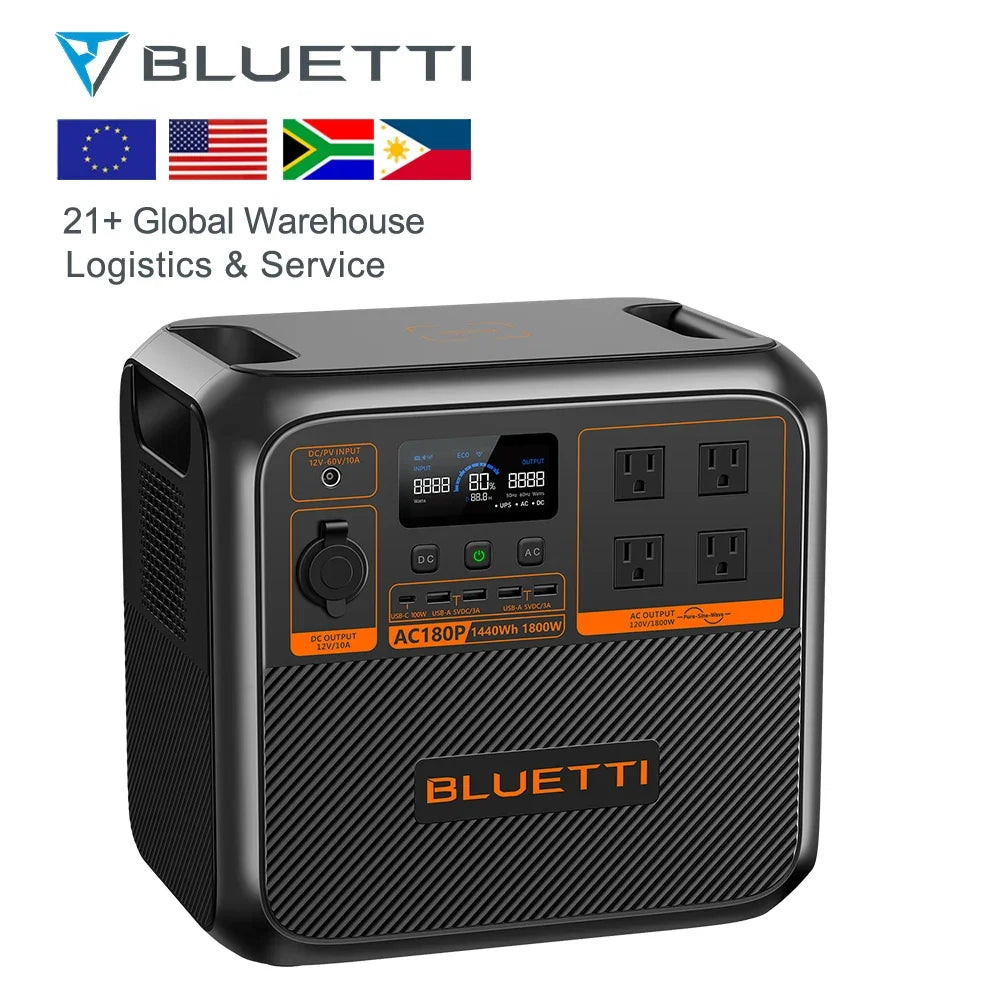

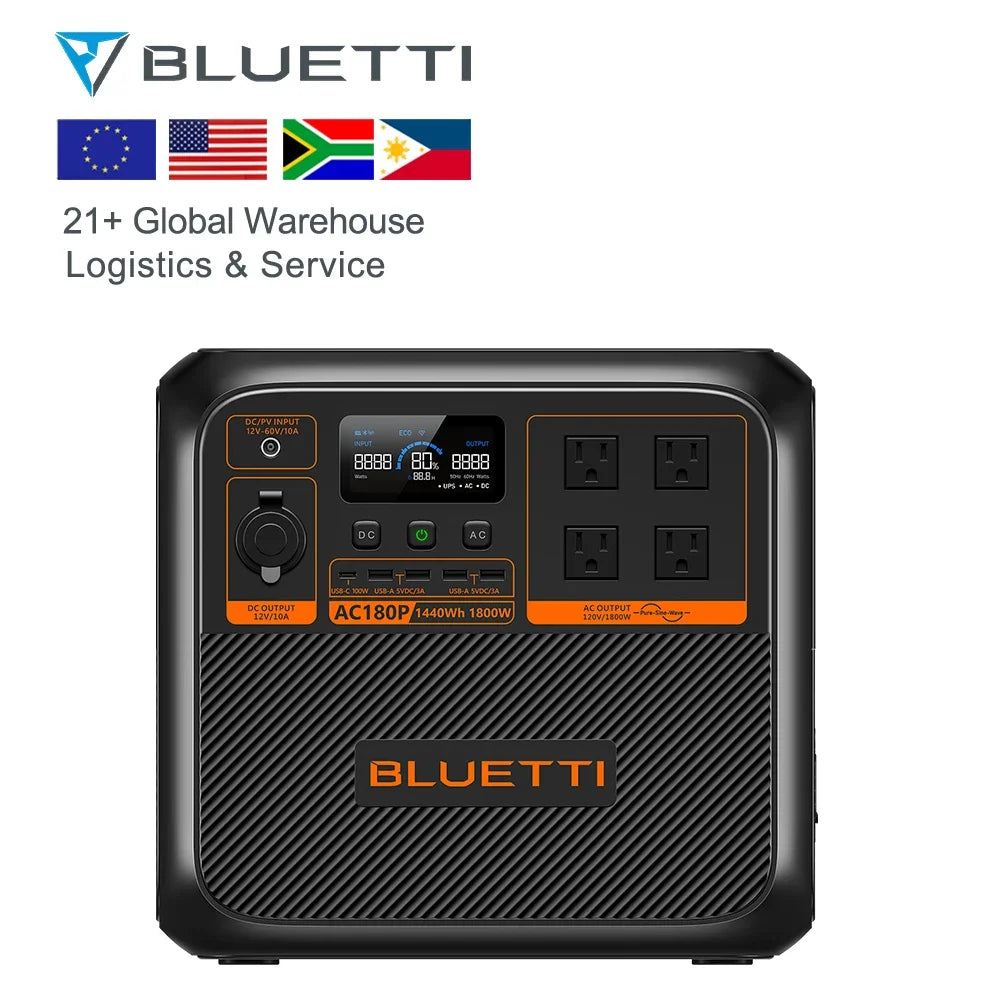

Model
|
AC180P
|
|
|
|
||||
|
Area
|
JP
|
US
|
CN
|
EU/UN/AU
|
||||
|
Battery Capacity
|
1440Wh
|
|
|
|
||||
|
Cell Type
|
LiFePO4
|
|
|
|
||||
|
Net Weight
|
About 16kg/35.27lbs
|
|
|
|
||||
|
Dimensions (L*W*H)
|
340mm x 247mm x317mm/13.39in×9.72in×12.48in
|
|
|
|
||||
|
Charging Temperature
|
0°C～40°C/32°F~104°F
|
|
|
|
||||
|
Discharging Temperature
|
,-20°C ～40°C (35°C ～40°C: @1500W Max.)
|
|
|
|
||||
|
|
-4°F~104°F (95°F~104°F: @1500W Max.)
|
|
|
|
||||
|
|
(When SOC is 100%, the discharge power at 35°C~40°C can be
|
|
|
|
||||
|
|
greater than 1500W, but it may trigger over temperature protection)
|
|
|
|
||||
|
Storage Temperature
|
-20°C ～40°C/-4°F~104°F
|
|
|
|
||||
|
Working Humidity
|
10% ～90%
|
|
|
|
||||
|
DC Output
|
|
|
|
|
||||
|
Power
|
1800W in total
|
|
|
|
||||
|
Voltage
|
100VAC
|
120VAC
|
220VAC
|
230VAC
|
||||
|
Current
|
18A
|
15A
|
8.2A
|
7.8A
|
||||
|
Frequency
|
50/60Hz
|
|
|
|
||||
|
DC Output
|
|
|
|
|
||||
|
Cigarette Lighter Port
|
12VDC/10A
|
|
|
|
||||
|
USB-A
|
USB-A:5VDC/3A 15W in total
|
|
|
|
||||
|
|
USB-A:5VDC/3A 15W in total
|
|
|
|
||||
|
USB-C (Type-C)
|
5/9/12/15/20VDC, 3A; 20VDC, 5A (Built-in eMarker chip)
|
|
|
|
||||
|
Wireless Charging
|
5W/7.5W/10W/15W
|
|
|
|
||||
|
AC Input
|
|
|
|
|
||||
|
Voltage
|
100VAC
|
120VAC
|
220VAC
|
230VAC
|
||||
|
Max. Current
|
15A
|
15A
|
10A
|
10A
|
||||
|
Frequency
|
50/60Hz
|
|
|
|
||||
|
UPS
|
Switching time ≤20ms
|
|
|
|
||||
|
|
Test the function before use to avoid risk of data loss.
|
|
|
|
||||
|
Power
|
1440W Max. @10℃～30℃/50°F~86°F
|
|
|
|
||||
|
DC Input
|
|
|
|
|
||||
|
Interface
|
DC7909
|
|
|
|
||||
|
Power
|
500W/10A Max.
|
|
|
|
||||
|
Voltage
|
12V-60VDC
|
|
|
|
||||

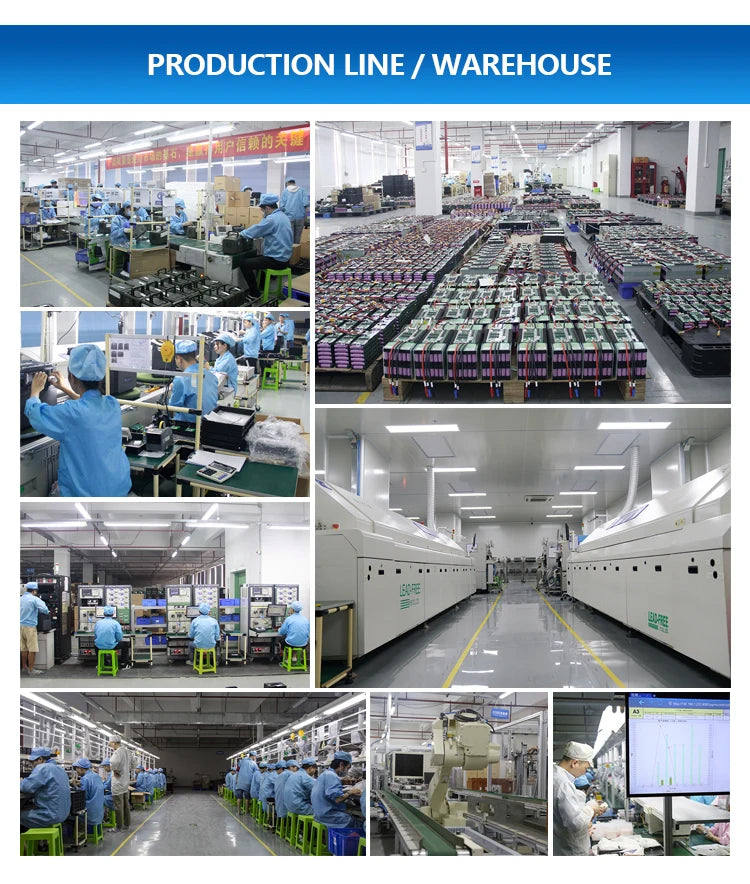

Company Profile
FAQ
Q1: How do I know whether my devices will work well with this product?
A: Please evaluate the total constant load of your devices. If it doesn't exceed the Max. output power of AC180P (1800W), you can use this power station to run your devices.
Note: Some devices with built-in motor/compressor may start at 2-4 times the rated power, which can easily overload the AC180P.

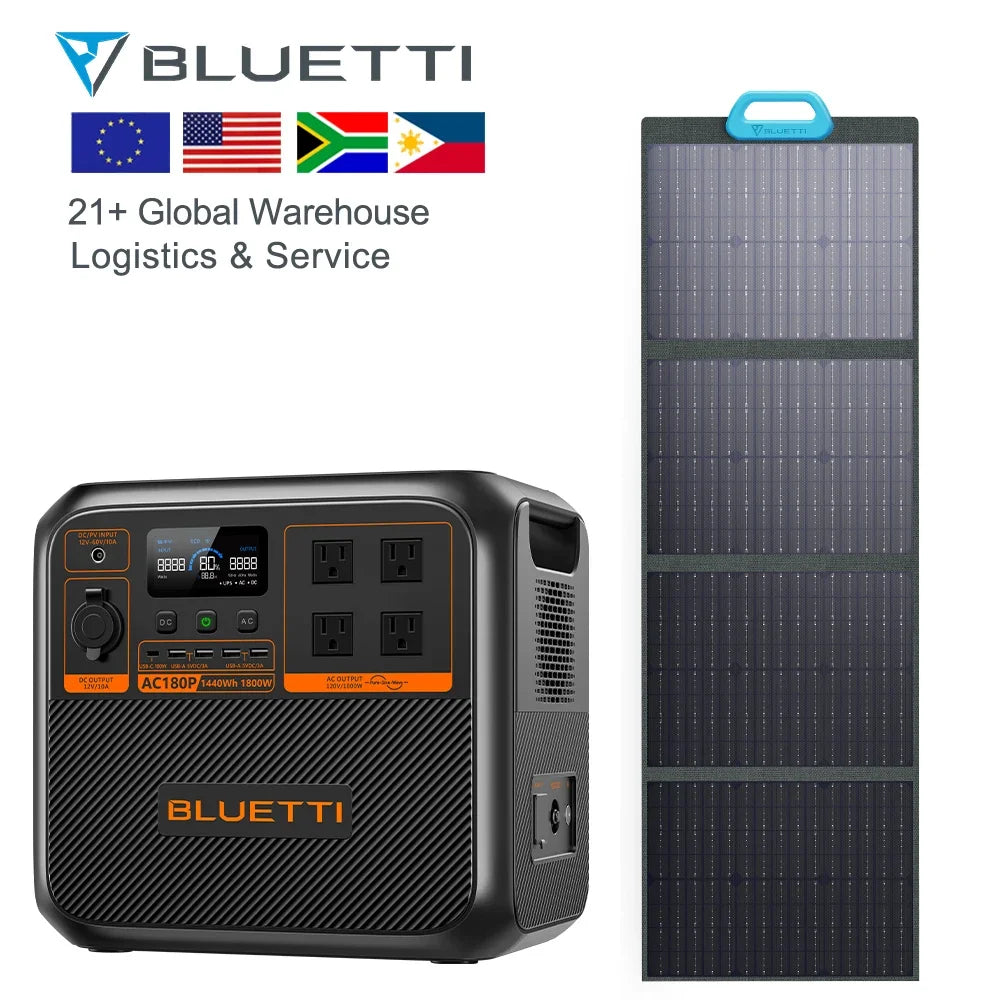

Q2: Can I use third-party solar panels to charge this product?
A: Yes, you can. Make sure your solar panels have an open circuit voltage of 12V-60V and have the MC4 connectors. Please do NOT mix different types of solar panels.
Note: Time required for one full charge depends on weather condition, the sunshine intensity and the angle of solar panels.
Q3: 可以同时充放电吗?
答:答:是的.它支持直通充电.AC180P 配备优质 LiFePO4 电池和专有的电池管理系统,确保它可以同时充电和放电.
Q4: 什么是 ECO 模式,我可以关闭它吗?
A: ECO 模式有助于省电,您可以在屏幕上打开或关闭它.当 ECO 模式运行时,如果 AC180P 有一段时间处于低负载或空载状态,AC/DC 输出将自动关闭.您可以将交流输出和直流输出的功率阈值分别设置为 15-30W /5-10W,持续 1,2,3 或 4 小时.
Q5: 为什么充电功率经常过低?
A: AC180P 内置智能 BMS,可根据电池温度和 SoC 自动调整充电功率,从而保护电池并延长其使用寿命.
Q6: 我可以让 AC180P 充电时噪音更小吗?
答:是的.在 BLUETTI 应用程序中选择"静音"进行交流充电.有关详细信息,请参阅 4.3.1 交流充电.
Q7: 何时应使用网格增强模式?
A: 当通过不稳定的交流电源(例如不可靠的电网或发电机)为 AC180P 充电时,此模式非常方便.
例如,如果您在为 AC180P 充电时更改发电机的输出,电压骤降也会导致充电失败.
A: Please evaluate the total constant load of your devices. If it doesn't exceed the Max. output power of AC180P (1800W), you can use this power station to run your devices.
Note: Some devices with built-in motor/compressor may start at 2-4 times the rated power, which can easily overload the AC180P.
Q2: Can I use third-party solar panels to charge this product?
A: Yes, you can. Make sure your solar panels have an open circuit voltage of 12V-60V and have the MC4 connectors. Please do NOT mix different types of solar panels.
Note: Time required for one full charge depends on weather condition, the sunshine intensity and the angle of solar panels.
Q3: 可以同时充放电吗?
答:答:是的.它支持直通充电.AC180P 配备优质 LiFePO4 电池和专有的电池管理系统,确保它可以同时充电和放电.
Q4: 什么是 ECO 模式,我可以关闭它吗?
A: ECO 模式有助于省电,您可以在屏幕上打开或关闭它.当 ECO 模式运行时,如果 AC180P 有一段时间处于低负载或空载状态,AC/DC 输出将自动关闭.您可以将交流输出和直流输出的功率阈值分别设置为 15-30W /5-10W,持续 1,2,3 或 4 小时.
Q5: 为什么充电功率经常过低?
A: AC180P 内置智能 BMS,可根据电池温度和 SoC 自动调整充电功率,从而保护电池并延长其使用寿命.
Q6: 我可以让 AC180P 充电时噪音更小吗?
答:是的.在 BLUETTI 应用程序中选择"静音"进行交流充电.有关详细信息,请参阅 4.3.1 交流充电.
Q7: 何时应使用网格增强模式?
A: 当通过不稳定的交流电源(例如不可靠的电网或发电机)为 AC180P 充电时,此模式非常方便.
例如,如果您在为 AC180P 充电时更改发电机的输出,电压骤降也会导致充电失败.
Add your collapsible row content here.
