SPECIFICATIONS
AC + DC Charging Power: 1000W Max.
AC output: 1000W in total
Battery Capacity: 864Wh
Battery Included: No
Battery Type: Lithium Ion
Brand Name: XMSJ,Bluetti
Built-in solar controller: MPPT
Cell Type: LiFePO4
Certification: CE
Connectivity: Bluetooth
Controller Type: MPPT

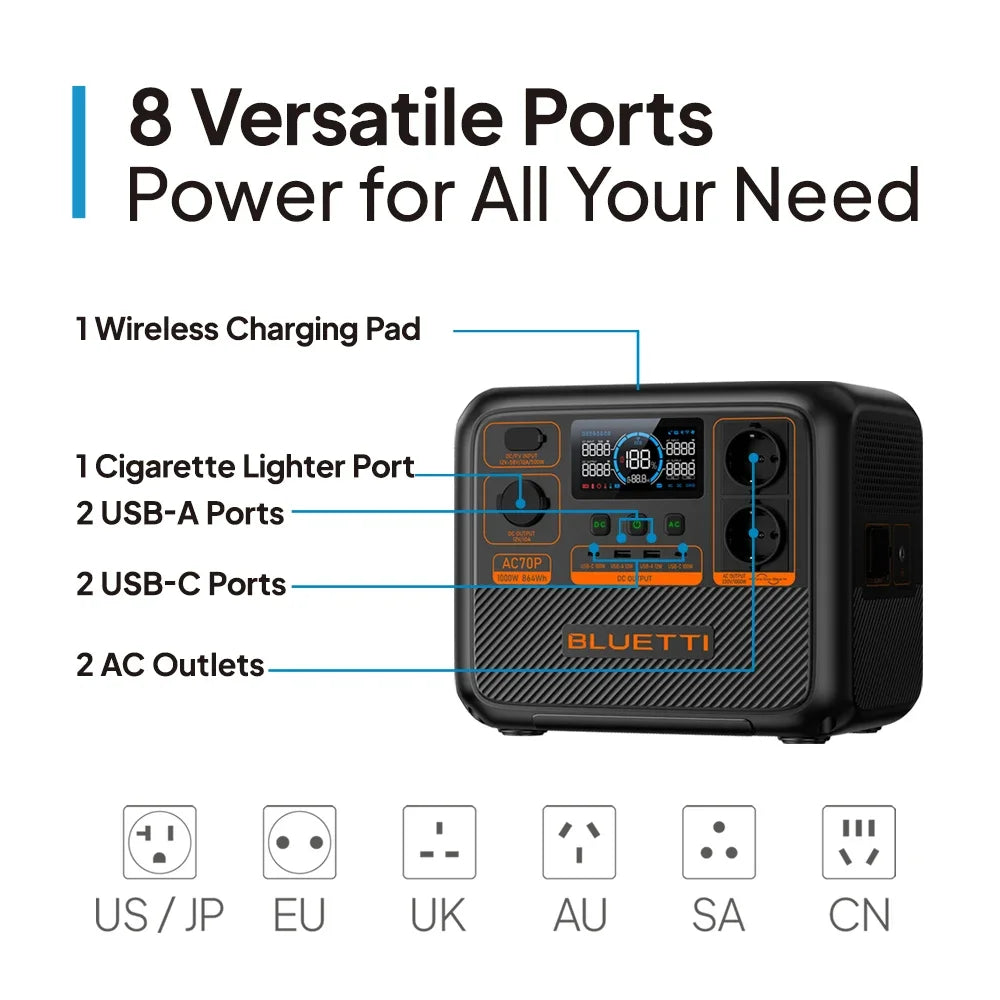

DC output: Cigarette Lighter Port * 1; USB-A * 2; USB-C * 2
Dimensions (L * W * H): 314*209.5*255.8mm/12.4*8.2*O.lin
Hign-concerned Chemical: None
Inverter Type: Pure Sine Wave
Model Number: AC70P
Origin: Mainland China
Place of Origin: Guangdong, China
Power Source: AC Adaptor, Car, Solar Panel
Special Features: Type C, Flashlight, Cigar Lighter
System Voltage: Other
UPS Switching time: ≤20ms
Weight: 10.7kg/23.6Ibs
If you have any questions, Please contact our customer service:
WhatsApp：+86 15216425580
Email：congandy02@163.com
Product Paramenters
|

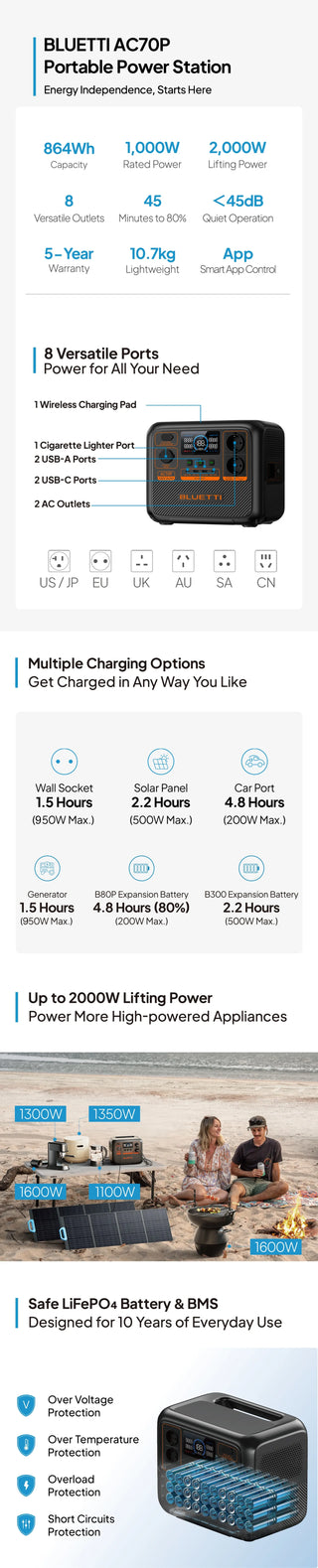

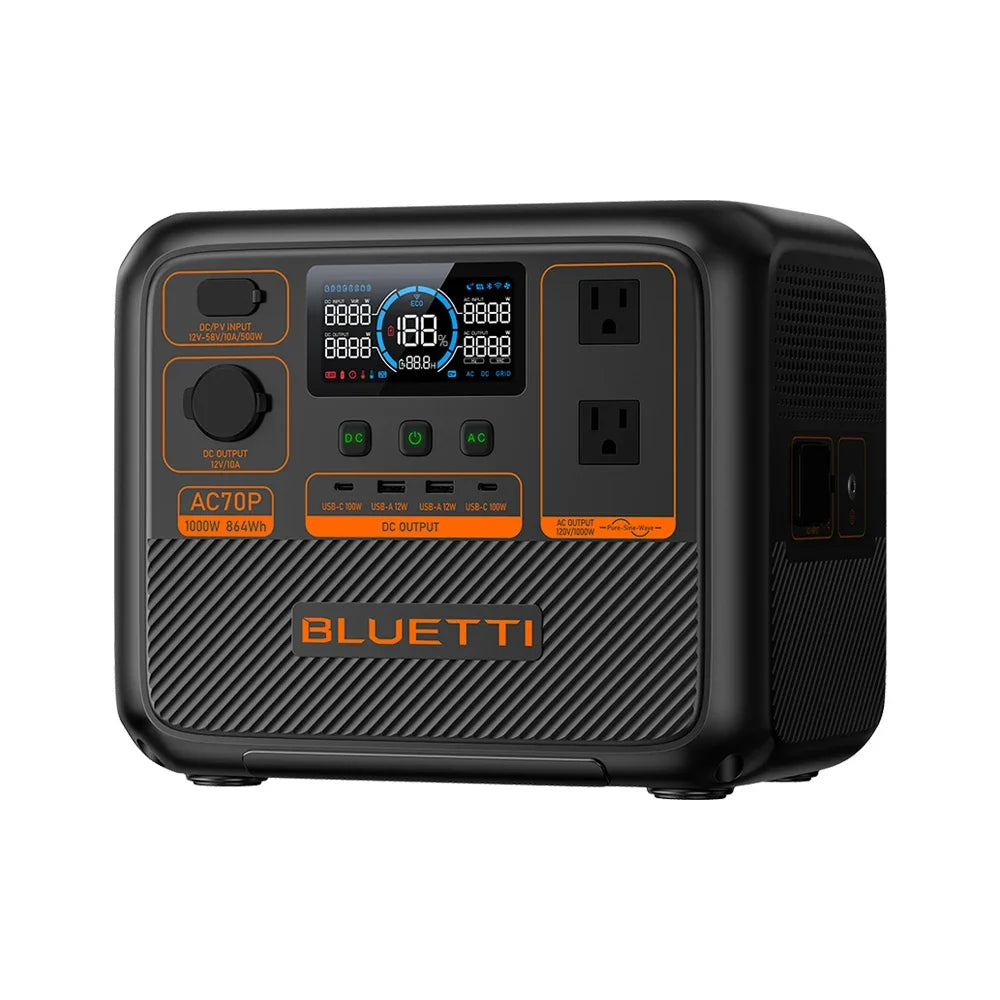

Bluetti 864wh/1000w Lithium Ion Rechargeable Battery China Solar Generator Portable Power Station
|
|
|
|
|
||||
|
Capacity
|
864Wh
|
|
|
|
||||
|
Cell Type
|
LiFePO鈧�
|
|
|
|
||||
|
AC+ DC Input
|
1000W Max.
|
|
|
|
||||
|
Charging Temperature
|
0 鈩�-40 鈩�/32°F- 104°F
|
|
|
|
||||
|
Discharging Temperature
|
-20°C-40 鈩�/-4°F- 104°F
|
|
|
|
||||
|
Output
|
|
|
|
|
||||
|
Power
|
1000W in total
|
|
|
|
||||
|
Voltage
|
JP-100VAC
|
US-120VAC
|
CN-220VAC
|
EU/UK/AU-23OVAC
|
||||
|
Current
|
10A
|
18.3A
|
4.5A
|
4.3A
|
||||
|
Frequency 50Hz/60Hz
|
50Hz/60Hz
|
|
|
|
||||
|
Cigarette Lighter Port
|
12VDC/10A
|
|
|
|
||||
|
USB-A*2
|
5VDC/2.4A
|
|
|
|
||||
|
USB-C*2
|
5/9/12/15/20V DC,3A; 20V DC,5A
|
|
|
|
||||
|
Input
|
|
|
|
|
||||
|
Vol tage
|
JP-100VAC
|
US-12OVAC
|
CN-220VAC
|
EU/UK/AU-23OVAC
|
||||
|
Max.Current
|
9A
|
9A
|
6A
|
6A
|
||||
|
Frequency
|
50Hz/60Hz
|
|
|
|
||||
|
UPS Switching time
|
≤20ms
|
|
|
|
||||
|
Others
|
|
|
|
|
||||
|
Connectivity
|
Bluetooth
|
|
|
|
||||
|
Dimensions(L*W*H)
|
314mmx209.5mm×255.8mm/12.4inx8.2inx鈧丱.lin
|
|
|
|
||||
|
Net Weight
|
10.7kg/23.6Ibs
|
|
|
|
||||
Become Bluetti Partner

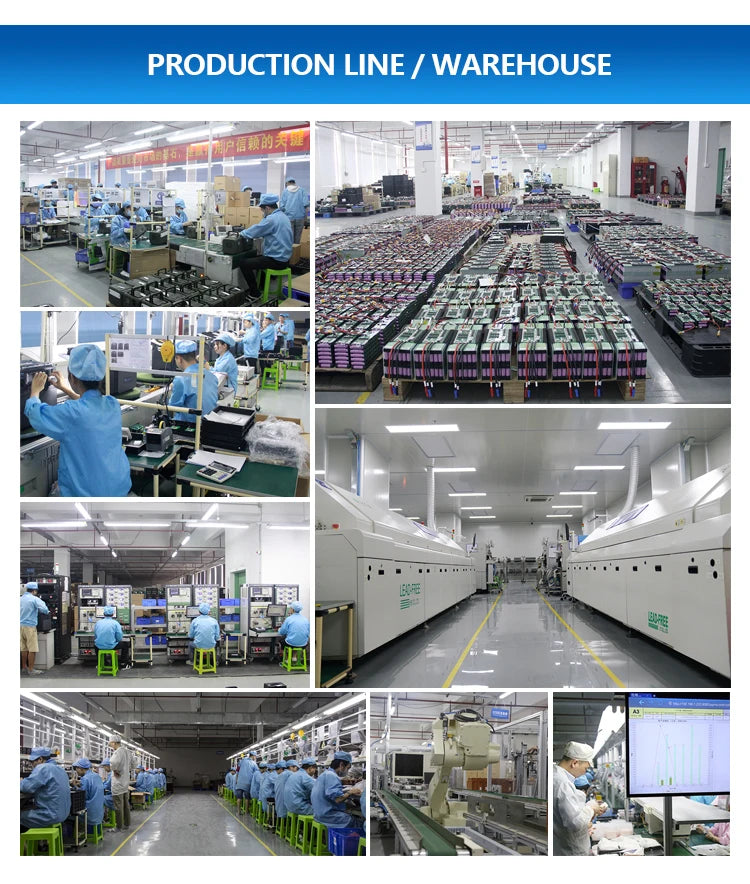

Company Profile
FAQ
Q1: How do I know whether my devices will work well with this product?
A: Please evaluate the total constant load of your devices. If it doesn't exceed the Max. output power of AC70P (1000W), you can use this power station to run your devices.
Note: Some devices with built-in motor or compressor may start at 2-4 times the rated power, which can easily overload the AC70P.
Q2: Can I use third-party solar panels to charge this product?
A: Yes, you can. However, make sure your solar panels have an open circuit voltage of 12V-58V and are equipped with MC4 connectors. It's also important not to mix different types of solar panels.
Q3: Can it charge and discharge at the same time?

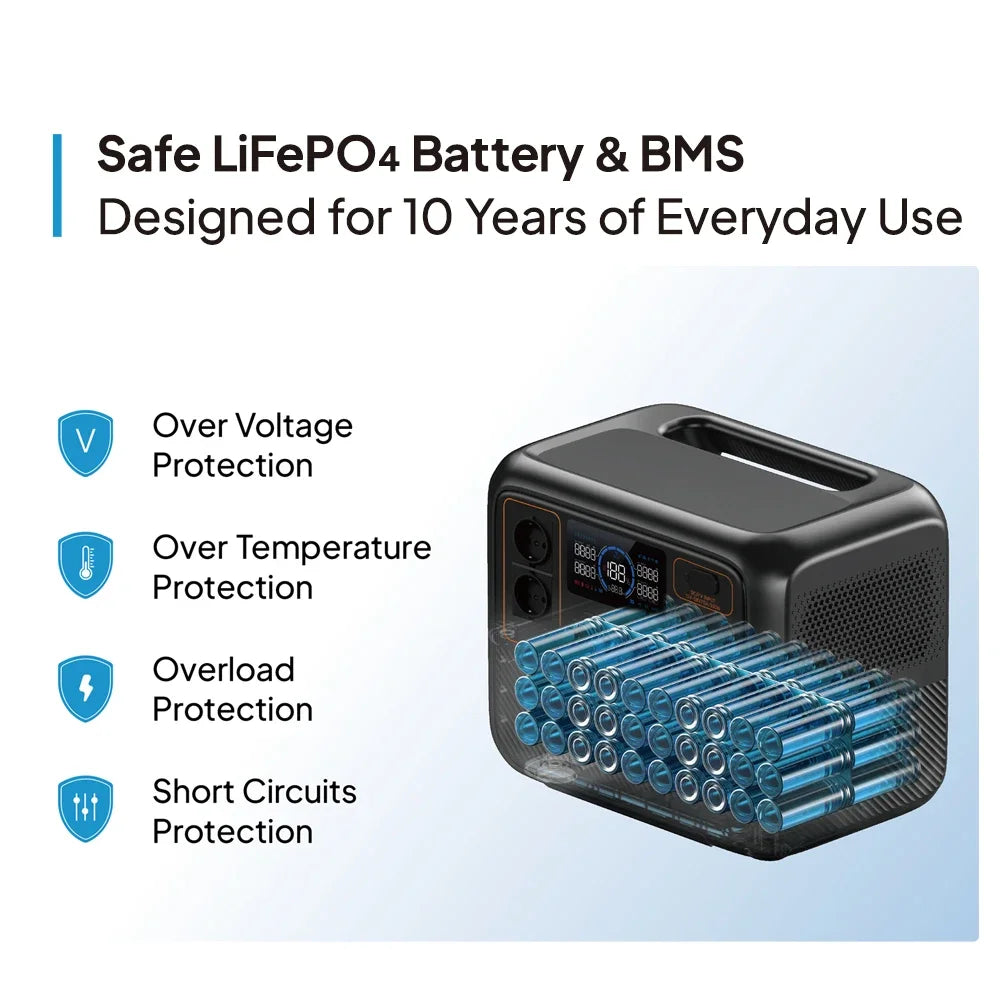

A: Yes. It supports pass-through charging. The AC70P comes with the premium LiFePO4 battery and proprietary Battery Management System to ensure that it can charge and discharge at the same time.
Q4: What is ECO Mode and can I turn it off?
A: ECO Mode helps save power, and you can turn it on or off on the screen. When operating on ECO Mode, the AC / DC output will automatically turn off if the AC70P is bearing low or no load for a while. You can set the power threshold of AC output and DC output to 10W-30W / 5W-10W, respectively, for 1, 2, 3, or 4 hours.
Q5: Why is the charging power often too low?
A: AC70P has a built-in intelligent BMS that automatically adjusts the charging power in response to the battery temperature and SoC, thus protecting the battery and extending its service life.
A: Please evaluate the total constant load of your devices. If it doesn't exceed the Max. output power of AC70P (1000W), you can use this power station to run your devices.
Note: Some devices with built-in motor or compressor may start at 2-4 times the rated power, which can easily overload the AC70P.
Q2: Can I use third-party solar panels to charge this product?
A: Yes, you can. However, make sure your solar panels have an open circuit voltage of 12V-58V and are equipped with MC4 connectors. It's also important not to mix different types of solar panels.
Q3: Can it charge and discharge at the same time?
A: Yes. It supports pass-through charging. The AC70P comes with the premium LiFePO4 battery and proprietary Battery Management System to ensure that it can charge and discharge at the same time.
Q4: What is ECO Mode and can I turn it off?
A: ECO Mode helps save power, and you can turn it on or off on the screen. When operating on ECO Mode, the AC / DC output will automatically turn off if the AC70P is bearing low or no load for a while. You can set the power threshold of AC output and DC output to 10W-30W / 5W-10W, respectively, for 1, 2, 3, or 4 hours.
Q5: Why is the charging power often too low?
A: AC70P has a built-in intelligent BMS that automatically adjusts the charging power in response to the battery temperature and SoC, thus protecting the battery and extending its service life.
